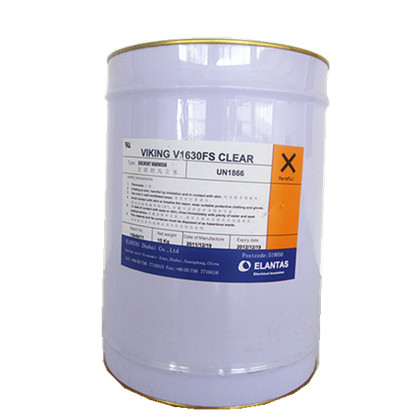

V-1630FS凡立水

• 厂商：
• 品牌：

VIKING V1630FS is a very fast setting, clear air dry, vinyl toluene, vegetable oil, modified insulating
varnish. It is thinned with low solvency thinner and can therefore be used with all types of enameled
magnet wire. It has minimal effect on electrical tapes. V1630FS has good solvent, water and ultra-violet
light resistance. Because it is thermoplastic, it can be soldered without removing the film in printed
circuit and other applications.

Application: VIKING V1630FS can be applied by brush, spray, or by dipping.n

Specifications:

Color                                                   Clear

Viscosity, Typical @ 25° C                                30-75 cps.

Density @ Typical @ 25°C                                6.83 lb./gal. (0.820 gm/cc)

Solids                                                  34-36%

Drying Time                                             15 minutes @ 78°F (25°C)

Thinner                                                 VM & P Naphthanoxssnoxss

Meets Rule #66.                                         Contains less than 1% aromatic

                                                        content.

Performance

Dielectric Strength:      Dry                             3300-3400 v/milPer ASTM D115        Wet                             2300-2500 v/milBond Strength: on MW35 per ASTM D2519                 24.0 lbs. @ 25°C                                                       3.3 lbs. @100°C

Storage Stability – Filled Closed Containers                 1 year @ 78°F (25°C)

Dip Tank Stability                                        Compatibility With Wire Enamels and Tapes                 Good

Solvent Resistance, including fluorocarbons                 Excellent – if baked 30 minutes

                                                        minimum (small units) @ 275°F                                       (135°C).

Moisture Resistance                                      Good

Resistance to Ultraviolet Light                              Good

Solderability                                             Good

Flash Point                                              44°F TAG Closed Cup

Temperature Class (ASTM D3251)                         UL Recognized for use in          Class A (105°C), Class B (130°C)             Class F (155°C), Class H (180°C)
