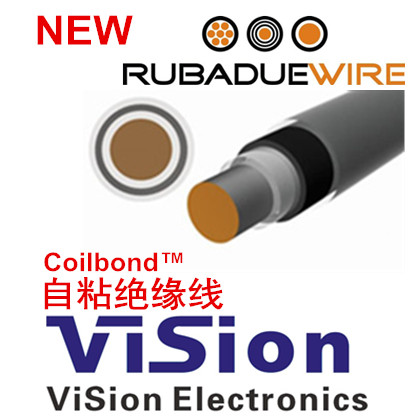

TXXA01TXXX-1-SB-1.5

  咨询  收藏  推荐

Product Information

Temperature Rating:
155°C
Wire Category:
CoilBond™
Insulation:
DuPont™ Tefzel® ETFE w/Proprietary Self-Bonding Overcoat
Size Range:
20 AWG - 40 AWG
Compliances:
  • RoHS Compliant
  • UL 60950-1 (Ed.2), Annex U
  • UL OBJT2 File No. E206198
Voltage Rating:
1000 V
Breakdown:
Approx. 4500 V
OD Tolerances:
20-24 AWG: +0.0015" / -0.0005"
25-40 AWG: +0.001" / -0.0005"
Conductor:
Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)
Bare Copper and other conductors available

Insulation Information

Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 150°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.6
Tensile Strength (psi):
6500
Elongation(%):
150-300
Abrasion Resistance:
Excellent
Bondability:
Excellent
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
Long Term Stability:
Excellent
ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications Self-Bonding Overcoat Information: The Self-Bonding Overcoat is a proprietary material intended for bonding the product together and it should not be considered an additional layer of insulation nor should it be used for any additional electrical or mechanical properties
Insulated Wire Information:
Part Number AWG Inches MM Inches
T20A01TXXX-1-SB-1.5 20 0.032 0.813 0.041
T21A01TXXX-1-SB-1.5 21 0.029 0.724 0.038
T22A01TXXX-1-SB-1.5 22 0.025 0.643 0.034
T23A01TXXX-1-SB-1.5 23 0.023 0.574 0.032
Bare Core Wire Specifications:
AWG Min. Dia. Nom. Dia. Max. Dia. Min. Res.* Nom. Res. Max. Res.
20 0.0317 0.0320 0.0330 0.0975 0.1053 0.1108
21 0.0282 0.0285 0.0294 0.1229 0.1328 0.1400
22 0.0250 0.0253 0.0261 0.1559 0.1685 0.1781
23 0.0224 0.0226 0.0233 0.1956 0.2112 0.2219
24 0.0199 0.0201 0.0207 0.2478 0.2669 0.2811
25 0.0177 0.0179 0.0184 0.3137 0.3366 0.3554
26 0.0157 0.0159 0.0164 0.3948 0.4266 0.4517
27 0.0141 0.0142 0.0146 0.4982 0.5349 0.5600
28 0.0125 0.0126 0.0130 0.6283 0.6793 0.7125
29 0.0112 0.0113 0.0116 0.7892 0.8446 0.8875
30 0.0099 0.0100 0.0103 1.0009 1.0785 1.1359
31 0.0088 0.0089 0.0092 1.2546 1.3616 1.4376
32 0.0079 0.0080 0.0083 1.5414 1.6852 1.7838
33 0.0070 0.0071 0.0074 1.9392 2.1395 2.2720
34 0.0062 0.0063 0.0066 2.4378 2.7173 2.8962
35 0.0055 0.0056 0.0059 3.0506 3.4391 3.6803
36 0.0049 0.0050 0.0053 3.7803 4.3140 4.6368
37 0.0044 0.0045 0.0048 4.6089 5.3259 5.7505
38 0.0039 0.0040 0.0043 5.7431 6.7406 7.3195
39 0.0034 0.0035 0.0038 7.3539 8.8041 9.6306
40 0.0030 0.0031 0.0034 9.1860 11.2227 12.3700
*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.
