- 厂商: RUBADUE WIRE INC
- 品牌: RUBADUE WIRE
Product Information
Wire Category:

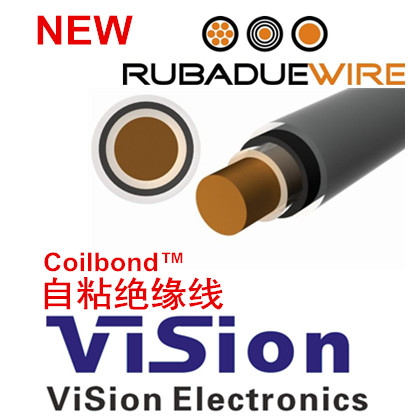

CoilBond™
Insulation:
Modified ETFE w/ Proprietary Self-Bonding Overcoat
Size Range:
18 AWG - 40 AWG
Compliances:
- RoHS Compliant
- UL 60601-1 (ed.3)
- UL 60950-1 (Ed.2), Annex U
- UL OBJT2 File No. E206198
Voltage Rating:
UL: 1500 V for electronic equipment
UL: 707 V for medical equipment
Breakdown:
Approx. 7000 V
OD Tolerances:
14-24 AWG: +0.0015" / -0.001"
25-40 AWG: +0.001" / -0.001"
UL 1446 Electrical System Approvals:
TCA Class F
Conductor:
Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)
Bare Copper and other conductors available
Insulation Information
Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 150°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.6
Tensile Strength (psi):
6500
Elongation(%):
150-300
Abrasion Resistance:
Excellent
Bondability:
Excellent
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
Underground Resistance:
Excellent
Long Term Stability:
Excellent
ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications Self-Bonding Overcoat Information: The Self-Bonding Overcoat is a proprietary material intended for bonding the product together and it should not be considered an additional layer of insulation nor should it be used for any additional electrical or mechanical properties.
Insulated Wire Information:
Part Number | AWG | Inches | MM | Inches | MM |
---|---|---|---|---|---|
TCA3 18 AWG-SB-1.5 | 18 | 0.0403 | 1.024 | 0.0523 | 1.33 |
TCA3 19 AWG-SB-1.5 | 19 | 0.0359 | 0.912 | 0.0479 | 1.22 |
TCA3 20 AWG-SB-1.5 | 20 | 0.0320 | 0.813 | 0.0440 | 1.12 |
TCA3 21 AWG-SB-1.5 | 21 | 0.0285 | 0.724 | 0.0405 | 1.03 |
TCA3 22 AWG-SB-1.5 | 22 | 0.0253 | 0.643 | 0.0373 | 0.95 |
TCA3 23 AWG-SB-1.5 | 23 | 0.0226 | 0.574 | 0.0346 | 0.88 |
TCA3 24 AWG-SB-1.5 | 24 | 0.0201 | 0.511 | 0.0321 | 0.82 |
TCA3 25 AWG-SB-1.5 | 25 | 0.0179 | 0.455 | 0.0299 | 0.76 |
TCA3 26 AWG-SB-1.5 | 26 | 0.0159 | 0.404 | 0.0279 | 0.71 |
TCA3 27 AWG-SB-1.5 | 27 | 0.0142 | 0.361 | 0.0262 | 0.67 |
TCA3 28 AWG-SB-1.5 | 28 | 0.0126 | 0.320 | 0.0246 | 0.62 |
TCA3 29 AWG-SB-1.5 | 29 | 0.0113 | 0.287 | 0.0233 | 0.59 |
TCA3 30 AWG-SB-1.5 | 30 | 0.0100 | 0.254 | 0.0220 | 0.56 |
TCA3 31 AWG-SB-1.5 | 31 | 0.0089 | 0.226 | 0.0209 | 0.53 |
TCA3 32 AWG-SB-1.5 | 32 | 0.0080 | 0.203 | 0.0200 | 0.51 |
TCA3 33 AWG-SB-1.5 | 33 | 0.0071 | 0.180 | 0.0191 | 0.49 |
TCA3 34 AWG-SB-1.5 | 34 | 0.0063 | 0.160 | 0.0183 | 0.46 |
TCA3 35 AWG-SB-1.5 | 35 | 0.0056 | 0.142 | 0.0176 | 0.45 |
TCA3 36 AWG-SB-1.5 | 36 | 0.0050 | 0.127 | 0.0170 | 0.43 |
TCA3 37 AWG-SB-1.5 | 37 | 0.0045 | 0.114 | 0.0165 | 0.42 |
TCA3 38 AWG-SB-1.5 | 38 | 0.0040 | 0.102 | 0.0160 | 0.41 |
TCA3 39 AWG-SB-1.5 | 39 | 0.0035 | 0.089 | 0.0155 | 0.39 |
TCA3 40 AWG-SB-1.5 | 40 | 0.0031 | 0.079 | 0.0151 | 0.38 |
*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.
