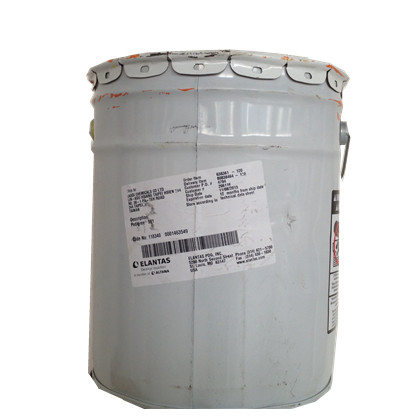

Pedigree® 961

  咨询  收藏  推荐
Description
The Pedigree 961 is a solvent
containing general purpose varnish. It
has an outstanding field history in a
variety of applications.
Uses
- Impregnation of stators, motors and
coils
Cured Properties
The Pedigree 961 has good electrical
and mechanical properties.
Catalyst
None Required.
Recommended Cure
After unit reaches temperature,
1 hour at 150°C (300°F) or 4 hours at
135°C (275 °F)
Features and Benefits
- Can be thinned with low cost solvents
- Good stability
Application Methods
- Dip and Bake
Transportation/Storage/Shelf Life
This resin should be stored at 25°C
(77°F) in a dry controlled environment
out of direct sunlight. This material
should be suitable for use stored under
these conditions in the original sealed
containers for twelve (12) months from
the date of shipment. Failure to store
this product as recommended above
may lead to deterioration in product
performance and invalidate shelf life.
Agitate before use.
Properties of Material Supplied
Test Value Units
Viscosity @ 25°C (77°F)
(ASTM D2196) 150 – 250 cP
Percent non-volatile matter
(ASTM D115) 47 – 50 %
Flash Point (ASTM D93), typical 18 (64) °C (°F)
Mass Lid Gel @ 150°C (300°F) < 60 minutes
A member of
Pedigree® 961 Insulating Varnish October, 9 2009 Rev. 3
TYPICAL PROPERTIES
Mechanical Properties – Double Dipped, Cured 2 hours at 150°C (300°F)
Test Value Units
Helical Coil Bond Strength @ 25°C
(77°F) (ASTM D2519) MW35 36 Pounds
Helical Coil Bond Strength @
150°C (300°F) (ASTM D2519)
MW35
2 Pounds
Electrical Properties
Test Value Units
Dielectric Strength – AS MADE
(ASTM D149) 3900 Volts/mil
Dielectric Strength after 24 hours in
water (ASTM D149) 2700 Volts/mil
Film thickness 2.1 mils
UL Recognized Insulation Systems (E87039)
Class Systems
Class 130 PDG 1, 2, 4A, 4B, 6, 12, 100, 106, 110, 111
Class 155 PDG 3, 9, 108
Class 180 PDG 14, H, H-1, 109, 180 High Voltage
Class 200 PDG 7, 10
Class 220 PDG 15
Class 240 PDG 16
