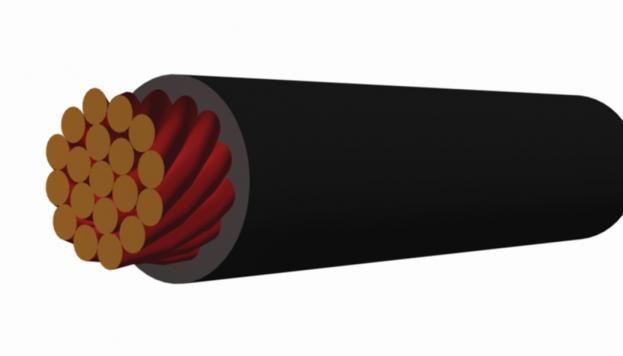

Basic (1 layer) Insulation, Litz wire, ETFE (Tefzel®) Insulation, Single Insulated Wire
Product Information
Wire Category:
Litz
Insulation:
DuPont™ Tefzel® ETFE
Compliances:
- RoHS Compliant
- UL OBJT2 File No. E206198
- UL/IEC 60950-1 (Ed. 2), am1 Annex U.
- IEC 61558-1
- VDE License Nr. 136743: Class F
Voltage Rating:
UL: 600V
VDE: 1000V
UL 1446 Electrical System Approvals:
RXT-2 Class F
Conductor:
Litz, 825 strands of 44 AWG, MW-80
Litz, 120 strands of 38 AWG, MW-80
Litz, 550 strands of 44 AWG, MW-80
Litz, 100 strands of 38 AWG, MW-80
Litz, 7 strands of 28 AWG, MW-80
Litz, 66 strands of 38 AWG, MW-80
Litz, 360 strands of 44 AWG, MW-80
Litz, 20 strands of 34 AWG, MW-80
Litz, 7 strands of 30 AWG, MW-80
Litz, 19 strands of 36 AWG, MW-80
Litz, 7 strands of 32 AWG, MW-80
Litz, 40 strands of 40 AWG, MW-80
Litz, 230 strands of 44 AWG, MW-80
Insulation Information
Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 150°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.6
Tensile Strength (psi):
6500
Elongation(%):
150-300
Abrasion Resistance:
Excellent
Bondability:
Poor
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
Underground Resistance:
Excellent
Long Term Stability:
Excellent
ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications.
Insulated Wire Information:
| Part Number | Equiv. AWG | Core O.D. (in) | Circular Mils. | No. Strands | AWG of Strands | Nominal O.D. (in) | Suggested Operating Frequency |
|---|---|---|---|---|---|---|---|
| SXXL825/44TX-3(MWXX) | 11 | 0.0844 | 3300 | 825 | 44 | 0.0904 | 400 - 850 khz |
| SXXL120/38TX-2(MWXX) | 15 | 0.0567 | 1920 | 120 | 38 | 0.0607 | 50 - 100 khz |
| SXXL120/38TX-3(MWXX) | 15 | 0.0567 | 1920 | 120 | 38 | 0.0627 | 50 - 100 khz |
| SXXL550/44TX-2(MWXX) | 13 | 0.0689 | 2200 | 550 | 44 | 0.0729 | 400 - 850 khz |
| SXXL550/44TX-3(MWXX) | 13 | 0.0689 | 2200 | 550 | 44 | 0.0749 | 400 - 850 khz |
| SXXL100/38TX-2(MWXX) | 16 | 0.0518 | 1600 | 100 | 38 | 0.0558 | 50 - 100 khz |
| SXXL100/38TX-3(MWXX) | 16 | 0.0518 | 1600 | 100 | 38 | 0.0578 | 50 - 100 khz |
| SXXL07/28TX-2(MWXX) | 18 | 0.0413 | 1110 | 7 | 28 | 0.0453 | 60 hz - 1 khz |
| SXXL07/28TX-3(MWXX) | 18 | 0.0413 | 1110 | 7 | 28 | 0.0473 | 60 hz - 1 khz |
| SXXL66/38TX-2(MWXX) | 18 | 0.0420 | 1056 | 66 | 38 | 0.0460 | 50 - 100 khz |
| SXXL66/38TX-3(MWXX) | 18 | 0.0420 | 1056 | 66 | 38 | 0.0480 | 50 - 100 khz |
| SXXL360/44TX-2(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0597 | 400 - 850 khz |
| SXXL360/44TX-3(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0617 | 400 - 850 khz |
| SXXL20/34TX-2(MWXX) | 19 | 0.0360 | 794 | 20 | 34 | 0.0400 | 20 khz |
| SXXL20/34TX-3(MWXX) | 19 | 0.0360 | 794 | 20 | 34 | 0.0420 | 20 khz |
| SXXL07/30TX-2(MWXX) | 20 | 0.0331 | 700 | 7 | 30 | 0.0371 | 1 - 10 khz |
| SXXL07/30TX-3(MWXX) | 20 | 0.0331 | 700 | 7 | 30 | 0.0391 | 1 - 10 khz |
| SXXL19/36TX-2(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0321 | 20 - 50 khz |
| SXXL19/36TX-3(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0341 | 20 - 50 khz |
| SXXL07/32TX-2(MWXX) | 21.5 | 0.0267 | 448 | 7 | 32 | 0.0307 | 10 khz |
| SXXL07/32TX-3(MWXX) | 21.5 | 0.0267 | 448 | 7 | 32 | 0.0327 | 10 khz |
| SXXL40/40TX-2(MWXX) | 22 | 0.0254 | 385 | 40 | 40 | 0.0294 | 100 - 200 khz |
| SXXL230/44TX-2(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0485 | 400 - 850 khz |
| SXXL230/44TX-3(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0505 | 400 - 850 khz |
Bare Core Wire Specifications: POLY-NYLON (Class 155) (MW-80C) The litz core wire consists of nylon enamel film over a polyurethane enamel base coat. The nylon improves cut through temperature, windability, resistence to abrasion, and resistance to chemicals and solvents without a change to the soldering properties. Because of these properties, this insulation is preferred on 30awg and larger when a solderable film is required.
