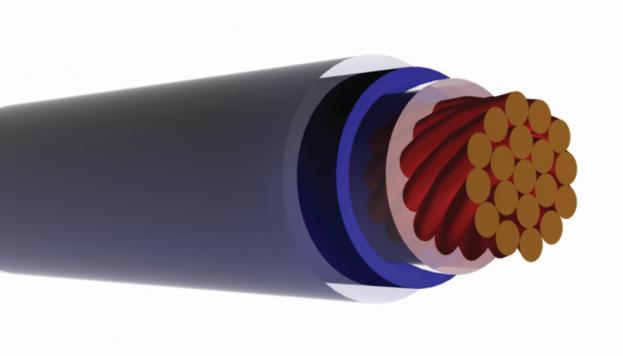

Reinforced (3 layer) Insulation, Litz wire, FEP Insulation, Triple Insulated Wire
Product Information
Wire Category:
Litz
Insulation:
DuPont™ Teflon® FEP
Compliances:
- RoHS Compliant
- UL OBJT2 File No. E206198
- UL/IEC 60950-1 (Ed. 2), am1 Annex U.
- IEC 61010-1 (Ed.3)
- VDE License Nr. 6715: Class F
Voltage Rating:
1000 V
UL 1446 Electrical System Approvals:
RXT-2 Class F
Conductor:
Litz, 825 strands of 44 AWG, MW-80
Litz, 120 strands of 38 AWG, MW-80
Litz, 550 strands of 44 AWG, MW-80
Litz, 7 strands of 28 AWG, MW-80
Litz, 66 strands of 38 AWG, MW-80
Litz, 360 strands of 44 AWG, MW-80
Litz, 19 strands of 36 AWG, MW-80
Litz, 7 strands of 32 AWG, MW-80
Litz, 40 strands of 40 AWG, MW-80
Litz, 230 strands of 44 AWG, MW-80
Litz, 108 strands of 40 AWG, MW-80
Litz, 19 strands of 34 AWG, MW-80
This product is not limited to the above litz parts. Please contact Rubadue Wire to discuss your litz needs
Insulation Information
Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 200°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.03
Tensile Strength (psi):
3000+
Elongation(%):
300
Abrasion Resistance:
Good
Bondability:
Poor
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
Underground Resistance:
Excellent
Long Term Stability:
Excellent
FEP is a Fluoropolymer compound with exceptional dielectric properties, heat resistance, chemical resistance, and flexibility. Commonly used in winding wires, UL AWM wires, and cable jacketing.
Insulated Wire Information:
| Part Number | Equiv. AWG | Core O.D. (in) | Circular Mils. | No. Strands | AWG of Strands | Nominal O.D. (in) | Suggested Operating Frequency |
|---|---|---|---|---|---|---|---|
| TXXL350/38FXXX-2(MWXX) | 12 | 0.0950 | 5600 | 350 | 38 | 0.1070 | 400 - 850 khz |
| TXXL350/38FXXX-3(MWXX) | 12 | 0.0950 | 5600 | 350 | 38 | 0.1130 | 400 - 850 khz |
| TXXL825/44FXXX-2(MWXX) | 11 | 0.0844 | 3300 | 825 | 44 | 0.0964 | 400 - 850 khz |
| TXXL825/44FXXX-3(MWXX) | 11 | 0.0844 | 3300 | 825 | 44 | 0.1024 | 400 - 850 khz |
| TXXL120/38FXXX-2(MWXX) | 15 | 0.0567 | 1920 | 120 | 38 | 0.0687 | 50 - 100 khz |
| TXXL120/38FXXX-3(MWXX) | 15 | 0.0567 | 1920 | 120 | 38 | 0.0747 | 50 - 100 khz |
| TXXL550/44FXXX-2(MWXX) | 13 | 0.0689 | 2200 | 550 | 44 | 0.0809 | 440 - 850 khz |
| TXXL550/44FXXX-3(MWXX) | 13 | 0.0689 | 2200 | 550 | 44 | 0.0869 | 440 - 850 khz |
| TXXL66/38FXXX-2(MWXX) | 18 | 0.0420 | 1056 | 66 | 38 | 0.0540 | 50 - 100 khz |
| TXXL66/38FXXX-3(MWXX) | 18 | 0.0420 | 1056 | 66 | 38 | 0.0600 | 50 - 100 khz |
| TXXL108/40FXXX-2(MWXX) | 18.5 | 0.0418 | 1038 | 108 | 40 | 0.0538 | 100 - 200 khz |
| TXXL108/40FXXX-3(MWXX) | 18.5 | 0.0418 | 1038 | 108 | 40 | 0.0598 | 100 - 200 khz |
| TXXL360/44FXXX-2(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0677 | 400 - 850 khz |
| TXXL360/44FXXX-3(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0737 | 400 - 850 khz |
| TXXL07/28FXXX-2(MWXX) | 18 | 0.0413 | 1110 | 7 | 28 | 0.0533 | 60 hz - 1 khz |
| TXXL07/28FXXX-3(MWXX) | 18 | 0.0413 | 1110 | 7 | 28 | 0.0593 | 60 hz - 1 khz |
| TXXL19/36FXXX-2(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0401 | 20 - 50 khz |
| TXXL19/36FXXX-3(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0461 | 20 - 50 khz |
| TXXL230/44FXXX-2(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0565 | 400 - 850 khz |
| TXXL230/44FXXX-3(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0625 | 400 - 850 khz |
| TXXL19/34FXXX-2(MWXX) | 19.5 | 0.0351 | 755 | 19 | 34 | 0.0471 | 20 khz |
| TXXL19/34FXXX-3(MWXX) | 19.5 | 0.0351 | 755 | 19 | 34 | 0.0531 | 20 khz |
| TXXL40/40FXXX-2(MWXX) | 22 | 0.0254 | 385 | 40 | 40 | 0.0374 | 100 - 200 khz |
| TXXL07/32FXXX-2(MWXX) | 24 | 0.0267 | 448 | 7 | 32 | 0.0387 | 10 khz |
POLY-NYLON (Class 155) (MW-80C) The litz core wire consists of nylon enamel film over a polyurethane enamel base coat. The nylon improves cut through temperature, windability, resistence to abrasion, and resistance to chemicals and solvents without a change to the soldering properties. Because of these properties, this insulation is preferred on 30awg and larger when a solderable film is required.
