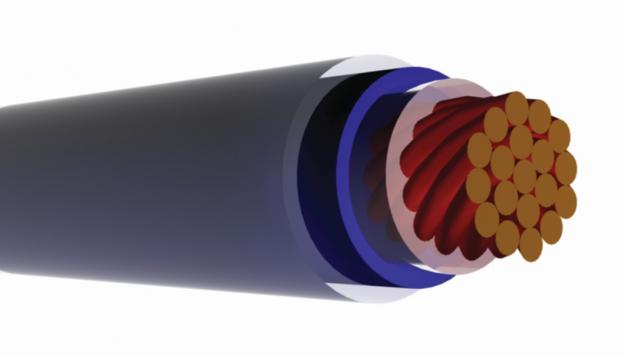

Reinforced (3 layer) Insulation, Litz wire, ETFE (Tefzel®) Insulation, Triple Insulated Wire
Product Information
Wire Category:
Litz
Insulation:
DuPont™ Tefzel® ETFE
Compliances:
- RoHS Compliant
- UL OBJT2 File No. E206198
- UL/IEC 60950-1 (Ed. 2), am1 Annex U.
- IEC 60601-1
- IEC 61558-1
- IEC 61010-1 (Ed.3)
- UL 2601
- VDE License Nr. 136743: Class F
Voltage Rating:
UL: 1500 V for electronic equipment
UL: 707 V for medical equipment
VDE: 1000V
UL 1446 Electrical System Approvals:
RXT-2 Class F
TCA Class F
Conductor:
Litz, 360 strands of 44 AWG, MW-80
Litz, 7 strands of 30 AWG, MW-80
Litz, 19 strands of 36 AWG, MW-80
Litz, 7 strands of 32 AWG, MW-80
Litz, 40 strands of 40 AWG, MW-80
Litz, 230 strands of 44 AWG, MW-80
Litz, 5 strands of 32 AWG, MW-80
Litz, 15 strands of 30 AWG, MW-80
Litz, 35 strands of 38 AWG, MW-80
Litz, 19 strands of 40 AWG, MW-80
Litz, 16 strands of 44 AWG, MW-80
This product is not limited to the above litz parts. Please contact Rubadue Wire to discuss your litz needs
Insulation Information
Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 150°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.6
Tensile Strength (psi):
6500
Elongation(%):
150-300
Abrasion Resistance:
Excellent
Bondability:
Poor
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
Underground Resistance:
Excellent
Long Term Stability:
Excellent
ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications.
Insulated Wire Information:
| Part Number | Equiv. AWG | Core O.D. (in) | Circular Mils. | No. Strands | AWG of Strands | Nominal O.D. (in) | Suggested Operating Frequency |
|---|---|---|---|---|---|---|---|
| TXXL180/38TXXX-2(MWXX) | 13.5 | 0.0694 | 2880 | 180 | 38 | 0.0814 | 50 - 100 khz |
| TXXL180/38TXXX-3(MWXX) | 13.5 | 0.0694 | 2880 | 180 | 38 | 0.0874 | 50 - 100 khz |
| TXXL15/30TXXX-1.5(MWXX) | 16.5 | 0.0485 | 1500 | 15 | 30 | 0.0575 | 1 - 10 khz |
| TXXL15/30TXXX-2(MWXX) | 16.5 | 0.0485 | 1500 | 15 | 30 | 0.0605 | 1 - 10 khz |
| TXXL15/30TXXX-3(MWXX) | 16.5 | 0.0485 | 1500 | 15 | 30 | 0.0665 | 1 - 10 khz |
| TXXL360/44TXXX-2(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0677 | 400 - 850 khz |
| TXXL360/44TXXX-3(MWXX) | 15 | 0.0557 | 1440 | 360 | 44 | 0.0737 | 400 - 850 khz |
| TXXL19/36TXXX-2(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0401 | 20 - 50 khz |
| TXXL19/36TXXX-3(MWXX) | 21.5 | 0.0281 | 475 | 19 | 36 | 0.0461 | 20 - 50 khz |
| TXXL35/38TXXX-2(MWXX) | 21 | 0.0306 | 560 | 35 | 38 | 0.0426 | 50 - 100 khz |
| TXXL35/38TXXX-3(MWXX) | 21 | 0.0306 | 560 | 35 | 38 | 0.0486 | 50 - 100 khz |
| TXXL07/30TXXX-1.5(MWXX) | 20 | 0.0331 | 700 | 7 | 30 | 0.0421 | 1 - 10 khz |
| TXXL07/30TXXX-2(MWXX) | 20 | 0.0331 | 700 | 7 | 30 | 0.0451 | 1 - 10 khz |
| TXXL230/44TXXX-2(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0565 | 400 - 850 khz |
| TXXL230/44TXXX-3(MWXX) | 17 | 0.0445 | 920 | 230 | 44 | 0.0625 | 400 - 850 khz |
| TXXL40/40TXXX-1.5(MWXX) | 22 | 0.0254 | 385 | 40 | 40 | 0.0344 | 100 - 200 khz |
| TXXL40/40TXXX-2(MWXX) | 22 | 0.0254 | 385 | 40 | 40 | 0.0374 | 100 - 200 khz |
| TXXL07/32TXXX-1.5(MWXX) | 21.5 | 0.0267 | 448 | 7 | 32 | 0.0357 | 10 khz |
| TXXL07/32TXXX-2(MWXX) | 21.5 | 0.2670 | 448 | 7 | 32 | 0.0387 | 10 khz |
| TXXL19/40TXXX-1.5(MWXX) | 25.5 | 0.0175 | 183 | 19 | 40 | 0.0265 | 100 - 200 khz |
| TXXL19/40TXXX-2(MWXX) | 25.5 | 0.0175 | 183 | 19 | 40 | 0.0295 | 100 - 200 khz |
| TXXL05/32TXXX-1.5(MWXX) | 23 | 0.0226 | 320 | 5 | 32 | 0.0316 | 10 khz |
| TXXL05/32TXXX-2(MWXX) | 23 | 0.0226 | 320 | 5 | 32 | 0.0346 | 10 khz |
| TXXL16/44TXXX-1.5(MWXX) | 30 | 0.0101 | 64 | 16 | 44 | 0.0191 | 400 - 850 khz |
POLY-NYLON (Class 155) (MW-80C) The litz core wire consists of nylon enamel film over a polyurethane enamel base coat. The nylon improves cut through temperature, windability, resistence to abrasion, and resistance to chemicals and solvents without a change to the soldering properties. Because of these properties, this insulation is preferred on 30awg and larger when a solderable film is required.
