SXXA01PX-3 RUBADUE WIRE

　　咨询　　收藏　　推荐

厂商： Rubadue Wire Company Inc.
品牌： Rubadue Wire

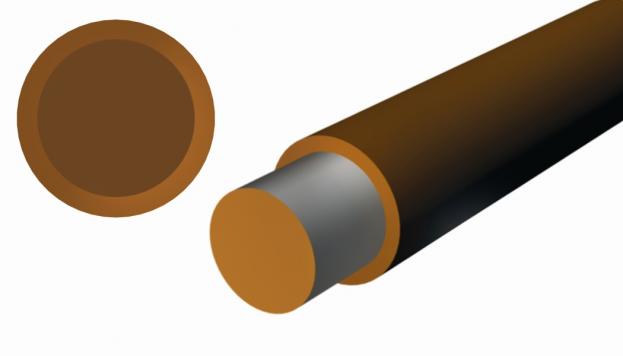

Basic (1 layer) Insulation PFA .003", Single Insulated Wire

Product Information

Temperature Rating:

180°C

Wire Category:

Basic (1 layer)

Insulation:

DuPont™ Teflon® PFA

Size Range:

UL: 28 AWG - 40 AWG

VDE: 14 AWG - 40 AWG

Compliances:

RoHS Compliant
UL 60601-1 (ed.3)
UL/IEC 60950-1 (Ed.2), Annex U. Class H
UL OBJT2 File No. E206198
VDE License Nr. 6716: Class H

Voltage Rating:

VDE: 600 V

UL: 600 V for Electronic equipment

UL: 425 V for Medical equipment

Breakdown:

Approx. 6000 V

OD Tolerances:

28-40 AWG: +0.001" / -0.0005"

Conductor:

Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)

Bare Copper and other conductors available

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 260°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.03

Tensile Strength (psi):

3600

Elongation(%):

300

Abrasion Resistance:

Good

Bondability:

Poor

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

PFA is a Fluoropolymer compound with superior heat resistance, exceptional dielectric properties, and chemical resistance. Commonly used in TEFLON® applications requiring a higher operating temperature.

Insulated Wire Information:

Part Number	AWG	Inches	MM	Inches	MM	Weight LB/KFT
S28A01PX-3	28	0.0126	0.320	0.0186	0.472	0.62
S29A01PX-3	29	0.0113	0.287	0.0173	0.439	0.52
S30A01PX-3	30	0.0100	0.254	0.0160	0.406	0.42
S31A01PX-3	31	0.0089	0.226	0.0149	0.378	0.35
S32A01PX-3	32	0.0080	0.203	0.0140	0.356	0.29
S33A01PX-3	33	0.0071	0.180	0.0131	0.333	0.24
S34A01PX-3	34	0.0063	0.160	0.0123	0.312	0.20
S35A01PX-3	35	0.0056	0.142	0.0116	0.295	0.17
S36A01PX-3	36	0.0050	0.127	0.0110	0.279	0.15
S37A01PX-3	37	0.0045	0.114	0.0105	0.267	0.13
S38A01PX-3	38	0.0040	0.102	0.0100	0.254	0.11
S39A01PX-3	39	0.0035	0.089	0.0095	0.241	0.10
S40A01PX-3	40	0.0031	0.079	0.0091	0.231	0.08

Bare Core Wire Specifications:

AWG	Min. Dia.	Nom. Dia.	Max. Dia.	Min. Res.*	Nom. Res.	Max. Res.
28	0.0125	0.0126	0.0130	0.6283	0.6793	0.7125
29	0.0112	0.0113	0.0116	0.7892	0.8446	0.8875
30	0.0099	0.0100	0.0103	1.0009	1.0785	1.1359
31	0.0088	0.0089	0.0092	1.2546	1.3616	1.4376
32	0.0079	0.0080	0.0083	1.5414	1.6852	1.7838
33	0.0070	0.0071	0.0074	1.9392	2.1395	2.2720
34	0.0062	0.0063	0.0066	2.4378	2.7173	2.8962
35	0.0055	0.0056	0.0059	3.0506	3.4391	3.6803
36	0.0049	0.0050	0.0053	3.7803	4.3140	4.6368
37	0.0044	0.0045	0.0048	4.6089	5.3259	5.7505
38	0.0039	0.0040	0.0043	5.7431	6.7406	7.3195
39	0.0034	0.0035	0.0038	7.3539	8.8041	9.6306
40	0.0030	0.0031	0.0034	9.1860	11.2227	12.3700

*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.
