SXXA01FX-3 RUBADUE WIRE

　　咨询　　收藏　　推荐

厂商： Rubadue Wire Company Inc.
品牌： Rubadue Wire

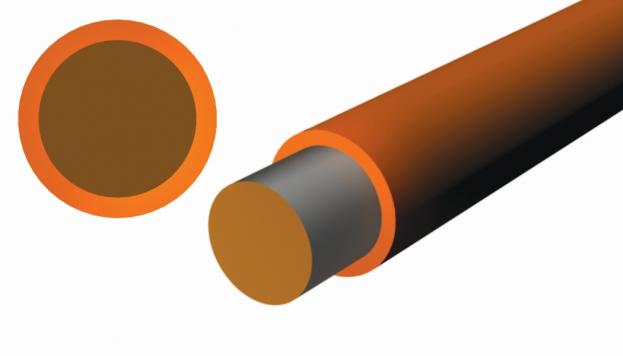

Basic (1 layer) Insulation FEP .003", Single Insulated Wire

Product Information

Temperature Rating:

155°C

Wire Category:

Basic (1 layer)

Insulation:

DuPont™ Teflon® FEP

Size Range:

10 AWG - 40 AWG

Compliances:

RoHS Compliant
UL OBJT2 File No. E206198
UL/IEC 60950-1 (Ed. 2), am1 Annex U.

Voltage Rating:

600 V

Breakdown:

Approx. 4500 V

OD Tolerances:

10-24 AWG: +0.0015" / -0.001"

25-40 AWG: +0.001" / -0.0005"

UL 1446 Electrical System Approvals:

RXT-2 Class F

Conductor:

Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)

Bare Copper and other conductors available

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 200°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.03

Tensile Strength (psi):

3000+

Elongation(%):

300

Abrasion Resistance:

Good

Bondability:

Poor

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

FEP is a Fluoropolymer compound with exceptional dielectric properties, heat resistance, chemical resistance, and flexibility. Commonly used in winding wires, UL AWM wires, and cable jacketing.

Insulated Wire Information:

Part Number	AWG	Inches	MM	Inches	MM	Weight LB/KFT
S16A01FX-3	16	0.0508	1.290	0.0568	1.443	8.29
S16A19FX-3	16(19/29)	0.0539	1.369	0.0599	1.521	8.00
S18A01FX-3	18	0.0403	1.024	0.0463	1.176	5.31
S18A19FX-3	18(19/30)	0.0476	1.209	0.0536	1.361	6.33
S20A01FX-3	20	0.0320	0.813	0.0380	0.965	3.41
S20A19FX-3	20(19/32)	0.0385	0.978	0.0445	1.130	4.12
S22A01FX-3	22	0.0253	0.643	0.0313	0.795	2.19
S22A19FX-3	22(19/32)	0.0295	0.749	0.0355	0.902	2.62
S24A01FX-3	24	0.0201	0.511	0.0261	0.663	1.43
S24A19FX-3	24(19/36)	0.0242	0.615	0.0302	0.767	1.71
S25A01FX-3	25	0.0179	0.455	0.0239	0.607	1.25
S26A01FX-3	26	0.0190	0.483	0.0250	0.635	0.96
S27A01FX-3	27	0.0142	0.361	0.0202	0.513	0.76
S28A01FX-3	28	0.0126	0.320	0.0186	0.472	0.62
S29A01FX-3	29	0.0113	0.287	0.0173	0.439	0.52
S30A01FX-3	30	0.0100	0.254	0.0160	0.406	0.42
S31A01FX-3	31	0.0089	0.226	0.0149	0.378	0.35
S32A01FX-3	32	0.0080	0.203	0.0140	0.356	0.29
S33A01FX-3	33	0.0071	0.180	0.0131	0.333	0.24
S34A01FX-3	34	0.0063	0.160	0.0123	0.312	0.20
S35A01FX-3	35	0.0056	0.142	0.0116	0.295	0.17
S36A01FX-3	36	0.0050	0.127	0.0110	0.279	0.15
S37A01FX-3	37	0.0045	0.114	0.0105	0.267	0.13
S38A01FX-3	38	0.0040	0.102	0.0100	0.254	0.11
S39A01FX-3	39	0.0035	0.089	0.0095	0.241	0.10
S40A01FX-3	40	0.0031	0.079	0.0091	0.231	0.08

Bare Core Wire Specifications:

AWG	Min. Dia.	Nom. Dia.	Max. Dia.	Min. Res.*	Nom. Res.	Max. Res.
10	0.1009	0.1019	0.1050	0.0096	0.0104	0.0109
11	0.0898	0.0907	0.0934	0.0122	0.0131	0.0138
12	0.0800	0.0808	0.0832	0.0153	0.0165	0.0174
13	0.0713	0.0720	0.0742	0.0193	0.0208	0.0219
14	0.0635	0.0641	0.0660	0.0244	0.0262	0.0276
15	0.0565	0.0571	0.0588	0.0307	0.0331	0.0349
16	0.0503	0.0508	0.0523	0.0388	0.0418	0.0440
17	0.0448	0.0453	0.0467	0.0487	0.0526	0.0555
18	0.0399	0.0403	0.0415	0.0617	0.0664	0.0699
19	0.0355	0.0359	0.0370	0.0776	0.0837	0.0883
20	0.0317	0.0320	0.0330	0.0975	0.1053	0.1108
21	0.0282	0.0285	0.0294	0.1229	0.1328	0.1400
22	0.0250	0.0253	0.0261	0.1559	0.1685	0.1781
23	0.0224	0.0226	0.0233	0.1956	0.2112	0.2219
24	0.0199	0.0201	0.0207	0.2478	0.2669	0.2811
25	0.0177	0.0179	0.0184	0.3137	0.3366	0.3554
26	0.0157	0.0159	0.0164	0.3948	0.4266	0.4517
27	0.0141	0.0142	0.0146	0.4982	0.5349	0.5600
28	0.0125	0.0126	0.0130	0.6283	0.6793	0.7125
29	0.0112	0.0113	0.0116	0.7892	0.8446	0.8875
30	0.0099	0.0100	0.0103	1.0009	1.0785	1.1359
31	0.0088	0.0089	0.0092	1.2546	1.3616	1.4376
32	0.0079	0.0080	0.0083	1.5414	1.6852	1.7838

*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.
