SXXA01TX-1.5 RUBADUE WIRE

　　咨询　　收藏　　推荐

厂商： Rubadue Wire Company Inc.
品牌： Rubadue Wire

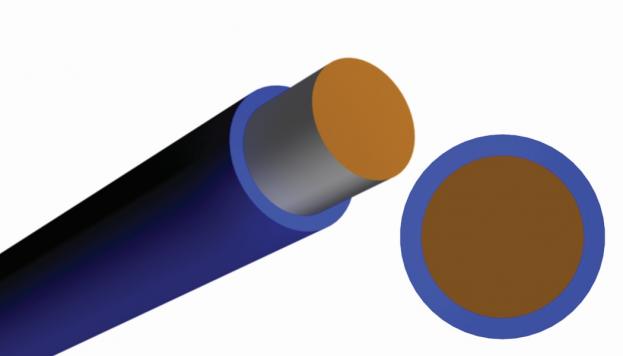

Basic (1 layer), ETFE (Tefzel®) Insulation, .0015", Single Insulated Wire

Product Information

Temperature Rating:

155°C

Wire Category:

Basic (1 layer)

Insulation:

DuPont™ Tefzel® ETFE

Size Range:

UL: 22 AWG - 40 AWG

VDE: 14 AWG - 40 AWG

Compliances:

RoHS Compliant
UL OBJT2 File No. E206198
UL/IEC 60950-1 (Ed. 2), am1 Annex U.
IEC 61558-1
VDE License Nr. 136743: Class F

Voltage Rating:

UL: 600V

VDE: 1000V

Breakdown:

Approx. 2000 V

OD Tolerances:

22-24 AWG: +0.0015" / -0.0005"

25-40 AWG: +0.001" / -0.0005"

UL 1446 Electrical System Approvals:

RXT-2 Class F

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 150°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.6

Tensile Strength (psi):

6500

Elongation(%):

150-300

Abrasion Resistance:

Excellent

Bondability:

Poor

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications.

Insulated Wire Information:

Part Number	AWG	Inches	MM	Inches	MM	Weight LB/KFT
S22A01TX-1.5	22	0.0253	0.643	0.0283	0.719	2.03
S23A01TX-1.5	23	0.0226	0.574	0.0256	0.650	1.63
S24A01TX-1.5	24	0.0201	0.511	0.0231	0.587	1.30
S25A01TX-1.5	25	0.0179	0.455	0.0209	0.531	1.04
S26A01TX-1.5	26	0.0159	0.404	0.0189	0.480	0.83
S27A01TX-1.5	27	0.0142	0.361	0.0172	0.437	0.66
S28A01TX-1.5	28	0.0126	0.320	0.0156	0.396	0.53
S29A01TX-1.5	29	0.0113	0.287	0.0143	0.363	0.43
S30A01TX-1.5	30	0.0100	0.254	0.0130	0.330	0.34
S31A01TX-1.5	31	0.0089	0.226	0.0119	0.302	0.28
S32A01TX-1.5	32	0.0080	0.203	0.0110	0.279	0.23
S33A01TX-1.5	33	0.0071	0.180	0.0101	0.257	0.18
S34A01TX-1.5	34	0.0063	0.160	0.0093	0.236	0.15
S35A01TX-1.5	35	0.0056	0.142	0.0086	0.218	0.12
S36A01TX-1.5	36	0.0050	0.127	0.0080	0.203	0.10
S37A01TX-1.5	37	0.0045	0.114	0.0075	0.191	0.08
S38A01TX-1.5	38	0.0040	0.102	0.0070	0.178	0.07
S39A01TX-1.5	39	0.0035	0.089	0.0065	0.165	0.05
S40A01TX-1.5	40	0.0031	0.079	0.0061	0.155	0.05

Bare Core Wire Specifications:

AWG	Min. Dia.	Nom. Dia.	Max. Dia.	Min. Res.*	Nom. Res.	Max. Res.
22	0.0250	0.0253	0.0261	0.1559	0.1685	0.1781
23	0.0224	0.0226	0.0233	0.1956	0.2112	0.2219
24	0.0199	0.0201	0.0207	0.2478	0.2669	0.2811
25	0.0177	0.0179	0.0184	0.3137	0.3366	0.3554
26	0.0157	0.0159	0.0164	0.3948	0.4266	0.4517
27	0.0141	0.0142	0.0146	0.4982	0.5349	0.5600
28	0.0125	0.0126	0.0130	0.6283	0.6793	0.7125
29	0.0112	0.0113	0.0116	0.7892	0.8446	0.8875
30	0.0099	0.0100	0.0103	1.0009	1.0785	1.1359
31	0.0088	0.0089	0.0092	1.2546	1.3616	1.4376
32	0.0079	0.0080	0.0083	1.5414	1.6852	1.7838
33	0.0070	0.0071	0.0074	1.9392	2.1395	2.2720
34	0.0062	0.0063	0.0066	2.4378	2.7173	2.8962
35	0.0055	0.0056	0.0059	3.0506	3.4391	3.6803
36	0.0049	0.0050	0.0053	3.7803	4.3140	4.6368
37	0.0044	0.0045	0.0048	4.6089	5.3259	5.7505
38	0.0039	0.0040	0.0043	5.7431	6.7406	7.3195
39	0.0034	0.0035	0.0038	7.3539	8.8041	9.6306
40	0.0030	0.0031	0.0034	9.1860	11.2227	12.3700

*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.
