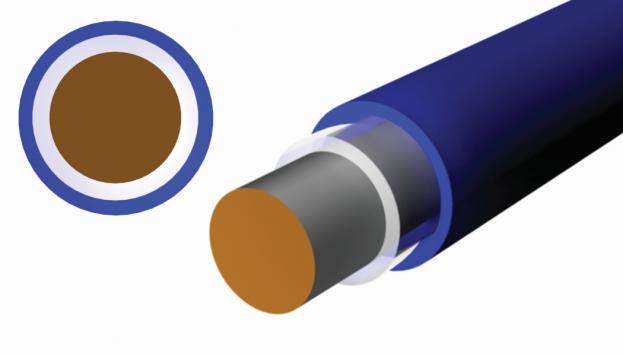

DXXA01PXX-3 RUBADUE WIRE

　　咨询　　收藏　　推荐

厂商： Rubadue Wire Company Inc.
品牌： Rubadue Wire

Supplementary (2 layer) Insulation PFA .003" / Layer, Double Insulated Wire

Product Information

Temperature Rating:

180°C

Wire Category:

Supplementary (2 layers)

Insulation:

DuPont™ Teflon® PFA

Size Range:

UL: 18 AWG - 40 AWG

VDE: 14 AWG - 38 AWG

Compliances:

RoHS Compliant
UL OBJT2 File No. E206198
UL/IEC 60950-1 (Ed. 2), am1 Annex U.
IEC 61558-1
VDE License Nr. 6716: Class H

Voltage Rating:

600 V

Breakdown:

Approx. 10,000

OD Tolerances:

14-24 AWG: +0.0015" / -0.001"

25-40 AWG: +0.001" / -0.001"

Conductor:

Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)

Bare Copper and other conductors available

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 260°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.03

Tensile Strength (psi):

3600

Elongation(%):

300

Abrasion Resistance:

Good

Bondability:

Poor

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

PFA is a Fluoropolymer compound with superior heat resistance, exceptional dielectric properties, and chemical resistance. Commonly used in TEFLON® applications requiring a higher operating temperature.

Insulated Wire Information:

Part Number	AWG	Inches	MM	Inches	MM	Weight LB/KFT
D18A01PXX-3	18	0.0403	1.024	0.0523	1.328	5.75
D19A01PXX-3	19	0.0359	0.912	0.0479	1.217	4.65
D20A01PXX-3	20	0.0320	0.813	0.0440	1.118	3.77
D21A01PXX-3	21	0.0285	0.724	0.0405	1.029	3.08
D22A01PXX-3	22	0.0253	0.643	0.0373	0.947	2.50
D23A01PXX-3	23	0.0226	0.574	0.0346	0.879	2.06
D24A01PXX-3	24	0.0201	0.511	0.0321	0.815	1.69
D25A01PXX-3	25	0.0179	0.455	0.0299	0.759	1.40
D26A01PXX-3	26	0.0159	0.404	0.0279	0.709	1.16
D27A01PXX-3	27	0.0142	0.361	0.0262	0.665	0.97
D28A01PXX-3	28	0.0126	0.320	0.0246	0.625	0.82
D29A01PXX-3	29	0.0113	0.287	0.0233	0.592	0.70
D30A01PXX-3	30	0.0100	0.254	0.0220	0.559	0.59
D31A01PXX-3	31	0.0089	0.226	0.0209	0.531	0.51
D32A01PXX-3	32	0.0080	0.203	0.0200	0.508	0.45
D33A01PXX-3	33	0.0071	0.180	0.0191	0.485	0.39
D34A01PXX-3	34	0.0063	0.160	0.0183	0.465	0.34
D35A01PXX-3	35	0.0056	0.142	0.0176	0.447	0.30
D36A01PXX-3	36	0.0050	0.127	0.0170	0.432	0.27
D37A01PXX-3	37	0.0045	0.114	0.0165	0.419	0.25
D38A01PXX-3	38	0.0040	0.102	0.0160	0.406	0.23
D39A01PXX-3	39	0.0035	0.089	0.0155	0.394	0.21
D40A01PXX-3	40	0.0031	0.079	0.0151	0.384	0.19

Bare Core Wire Specifications:

AWG	Min. Dia.	Nom. Dia.	Max. Dia.	Min. Res.*	Nom. Res.	Max. Res.
18	0.0399	0.0403	0.0415	0.0617	0.0664	0.0699
19	0.0355	0.0359	0.0370	0.0776	0.0837	0.0883
20	0.0317	0.0320	0.0330	0.0975	0.1053	0.1108
21	0.0282	0.0285	0.0294	0.1229	0.1328	0.1400
22	0.0250	0.0253	0.0261	0.1559	0.1685	0.1781
23	0.0224	0.0226	0.0233	0.1956	0.2112	0.2219
24	0.0199	0.0201	0.0207	0.2478	0.2669	0.2811
25	0.0177	0.0179	0.0184	0.3137	0.3366	0.3554
26	0.0157	0.0159	0.0164	0.3948	0.4266	0.4517
27	0.0141	0.0142	0.0146	0.4982	0.5349	0.5600
28	0.0125	0.0126	0.0130	0.6283	0.6793	0.7125
29	0.0112	0.0113	0.0116	0.7892	0.8446
